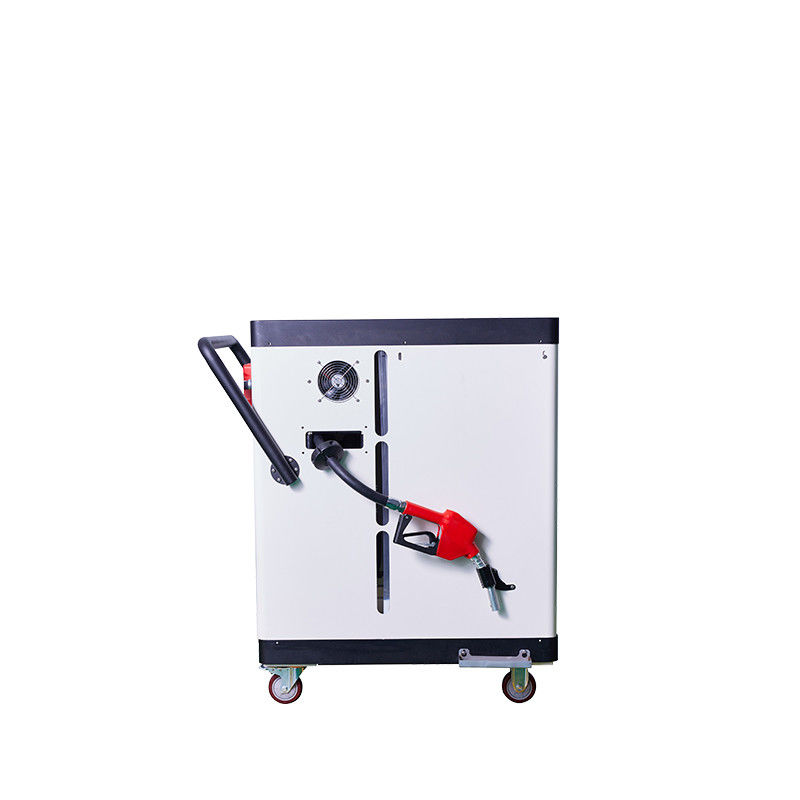

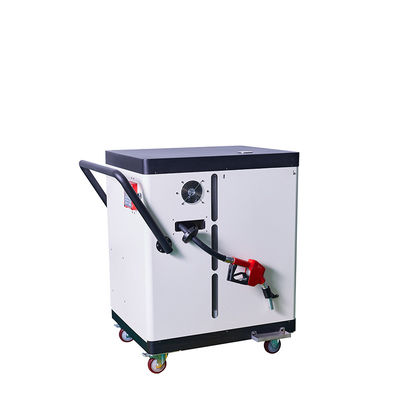

Mobile Machine Tool Coolant Filling Machine Cutting Fluid Filling Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Diang Tianke |
| Certification: | ISO9001 |
| Model Number: | DATK-PYJ002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pis |
|---|---|
| Price: | Negotiable |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 workdays |
| Payment Terms: | LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram |
| Supply Ability: | 1 |
|
Detail Information |
|||
| Features: | Flexible To Move And Easy To Add Liquid | Color: | White |
|---|---|---|---|
| Equipment Weight: | 152KG | Maximum Flow Rate: | 1500L/H |
| Working Voltage: | AC220V/DC24V | Origin: | Guangzhou |
| Application: | Filling Coolant For Machine Tools | Material: | Stainless Steel |
| Highlight: | Mobile Machine Tool Coolant Filling Machine,Fluid Machine Tool Coolant Filling Machine,Cutting Fluid Filling Equipment |
||
Product Description
Mobile Cutting Fluid Filling Vehicle, One Click Start, Automatic Gun Jump When Filled With Liquid
1.Equipment parameters
| Equipment size | 928*580*1100mm(Dimensions) |
| Packaging wooden box size | 1200*800*1150mm(Dimensions) |
| Equipment weight | 152kg |
| working voltage | DC24V/220V |
| quantity of electricity | 23AH |
| Power | 500W |
| Outlet pipe | 6m |
| maximum flow | 1500L/h |
| Water tank capacity | 200L |
| Operating temperature | 0-40℃ |
2.The mobile cutting fluid dispenser can quickly, accurately, and quantitatively add cutting fluid to the machine tool, avoiding waste. Suitable for multi machine tool fluid replenishment, with a built-in 200-liter liquid storage tank and a 10 meter long water pipe dispensing gun, fully enclosed mobile dispensing.
Applicable scenarios: Intelligent dispensing of metal working fluids, cleaning agents, grinding fluids, degreasing fluids, rolling fluids, saponification fluids, cooling fluids, and other metal working fluids.
3.performance
1. Equipped with a built-in 200 liter liquid storage tank, it can supply multiple machine tools with liquid at once;
2. The device comes with a rechargeable battery driver, which can be used without the need for AC power, making it convenient and fast;
3. Install a high-precision flow control system, which can set the amount of liquid added according to needs;
4. Equipped with an intelligent pressure sensor and a liquid dispensing gun, the liquid dispensing can be controlled to start or stop, making it easy to operate;
5. The liquid filling tube is equipped with an automatic collection function. After the liquid is added, the liquid filling tube automatically retracts without taking up external space;
6. Rechargeable batteries can be switched to external conventional 220V power sources even when they run out of charge, making it flexible and convenient to use;
